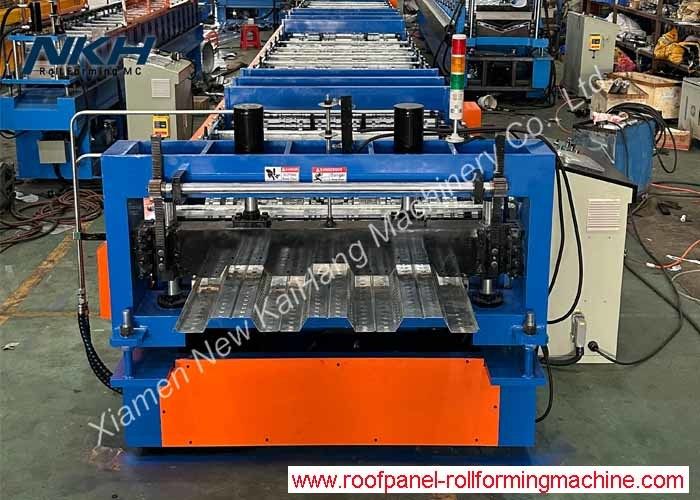

YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: NKH MACHINERY
Sertifika: CE/SONCAP/CSA
Model numarası: YX51-316-1000
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Birim
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: 40ft kapta kesici olan eski rulo için çıplak kargolar, plc kontrol dolabı için ahşap kutu
Teslim süresi: 90 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T
Yetenek temini: 5 ADET/AY

Detay Bilgi

İsim: Metal Güverte Rulo Şekillendirme Makinesi Açıcı Kapasitesi: 10 ton veya isteğe göre
Hammadde: GI, 345MPA Silindir malzemesi: 45# Çelik, Sert Krom Kaplamalı
Şaft çapı: 95 mm Kontrol sistemi: PLC kontrol sistemi
Kesme Bıçak Malzemesi: CR12, Isı Tedavisi

Ürün Açıklaması

YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming 0

YX51-316-1000 Decking Roll Forming Machine



Description/Technical Parameter of Complete Line:

YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming 1





Quick Detail:

  1. Thickness : 0.7-0.9mm
  2. Material : Galvanized sheets, G350
  3. Material weight : 10tons
  4. Coil inner diameter : 510mm+/-+30mm
  5. Driven way: by driven motor
  6. Cutting way: by hydraulic group
  7. Cutting tolerance : ±2mm

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.



YX51-316-1000 Decking Roll Forming Machine Steel Decking Floor Decking Metal Forming 2
