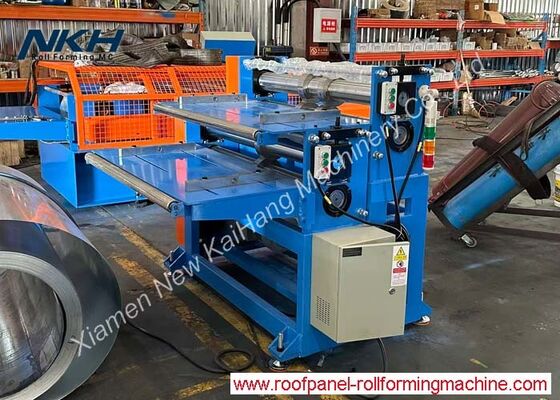

Simple Double Layer Slitting Machine for PPGL / GGPI / GI Material

Ürün Açıklaması

Simple double layer slitting machine, economic design, PPGL/ GGPI/ GI, simple slitting machine

Quick Detail:

1. Thickness : 0.3-1.0mm
2. Material : GI, PPGI, or Stainless steel, Aluminum
3. Production: Feed in piece by piece
4. Strips:3 strips/time
5. Slitting rollers:Cr12, heat treatment
6. PLC control cabinet: Inverter can be optional

Brief Introduction:

Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.

GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

Sometimes the required quantity is only few pcs, then the simple slitting machine is suitable to slit few meters only.

Description/Technical Parameter details of complete line:

• Details as below table :

• Simple control cabinet

FW/REV/EMERGENCY/STOP

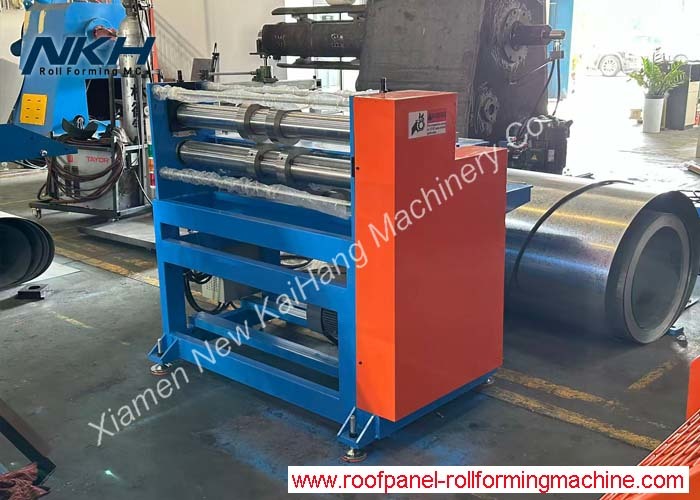

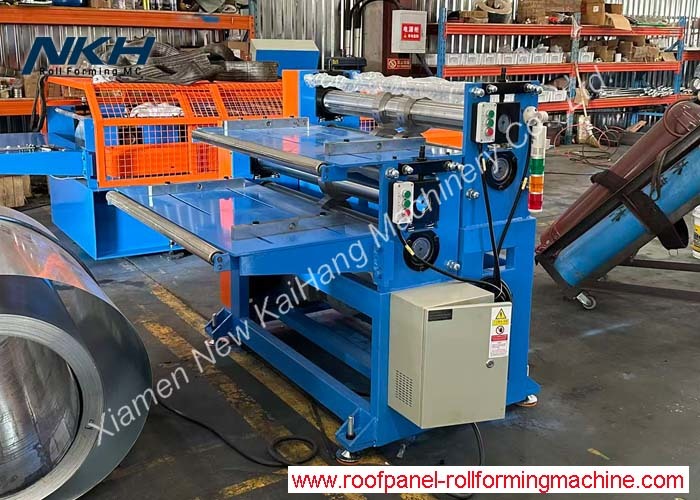

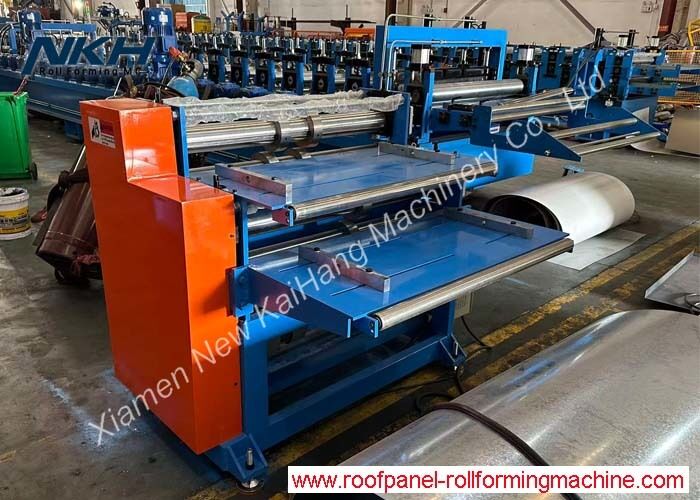

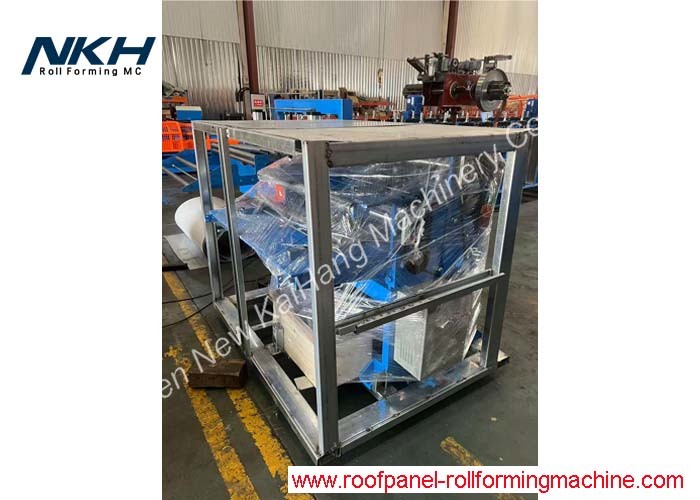

Profile Drawing/Layout/Equipment reference pictures:
