845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: NKH MACHINERY
Sertifika: CE/SONCAP/CSA
Model numarası: YX41-211-845
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 Birim
Fiyat: pazarlık edilebilir
Ambalaj bilgileri: NUDE 40FT KONTEYNERDE KESİCİ RULO ŞEKİLLENDİRİCİ İÇİN NAKLİYELER, PLC KONTROL KABİNİ İÇİN AHŞAP KUTU
Teslim süresi: 90 iş günü
Ödeme koşulları: L/C, D/A, D/P, T/T
Yetenek temini: 5 ADET/AY
Şimdi başvurun

Detay Bilgi
Adı: Metal Kiremit Şekillendirme Makinesi Çiğ madde: Önceden boyanmış bobin tabakaları
Bobin Ağırlığı: 10 ton veya isteğe göre Rulo malzemesi: 45 # çelik
mil çapı: 75mm Kontrol Sistemi: PLC kontrol sistemi
Kesme bıçağı malzemesi: Cr12, ısıl işlem

Ürün Açıklaması

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

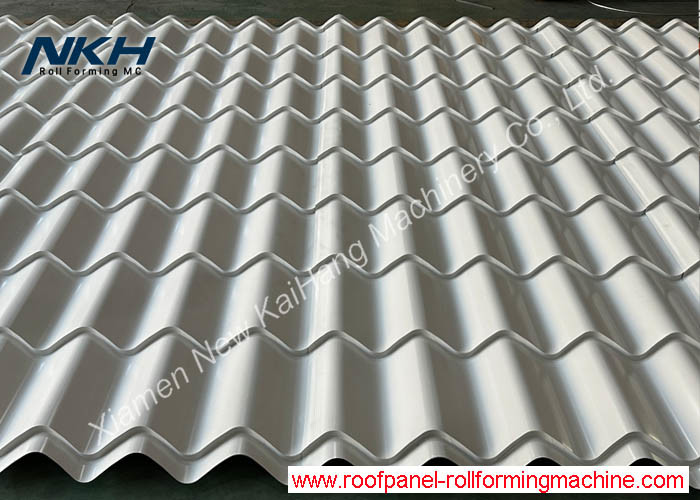

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

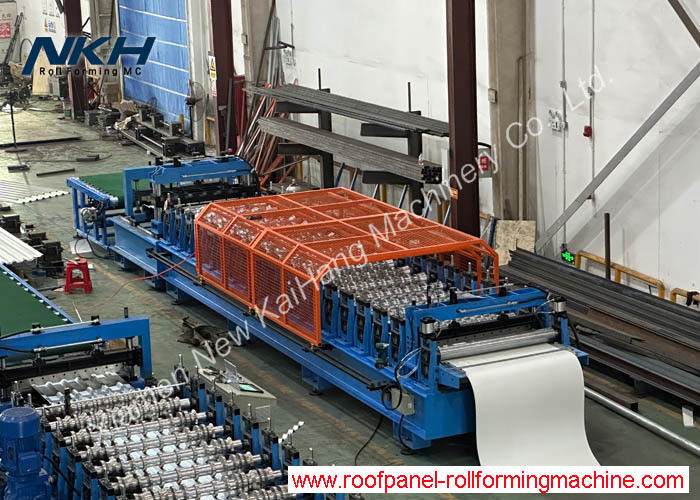

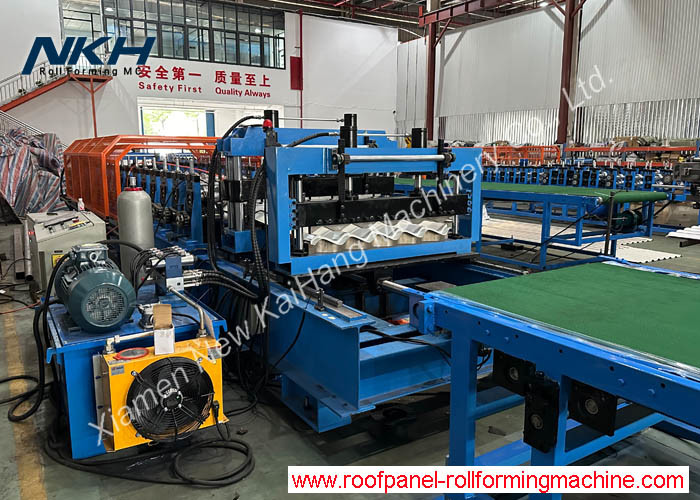

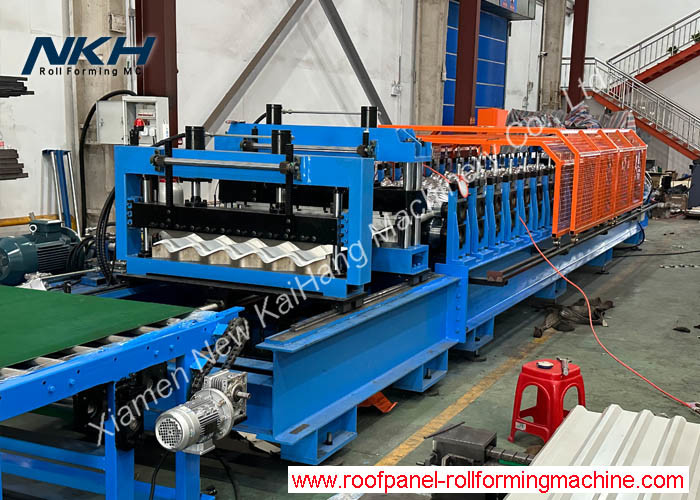

Drawings/Pictures of Complete Line:

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3
